Groundwater Protection in Transport Infrastructure

In environmentally sensitive areas, safeguarding groundwater during the construction of transport infrastructure is paramount. Novura offers effective and economical sealing systems, such as Bentofix® geosynthetic clay liners and Carbofol® geomembranes, which have been successfully implemented in numerous projects. These systems are utilised beneath roads, railways, and retention basins to prevent contaminants from infiltrating the groundwater. Bentofix® serves as an alternative to traditional thick clay liners, providing robust protection with its high-swelling natural sodium bentonite encapsulated between durable geotextiles. For areas exposed to aggressive chemicals, Carbofol® HDPE geomembranes offer superior chemical resistance and durability. To enhance the longevity and performance of these sealing systems, Secutex® protection nonwoven geotextiles are employed to shield the liners from mechanical damage during installation and operation. Additionally, Secumat® erosion control mats are used on slopes to prevent surface erosion, thereby maintaining the integrity of the protective barriers. By integrating these geosynthetic solutions, transport infrastructure projects can achieve reliable groundwater protection, ensuring environmental safety and compliance with stringent regulations.

Sealing

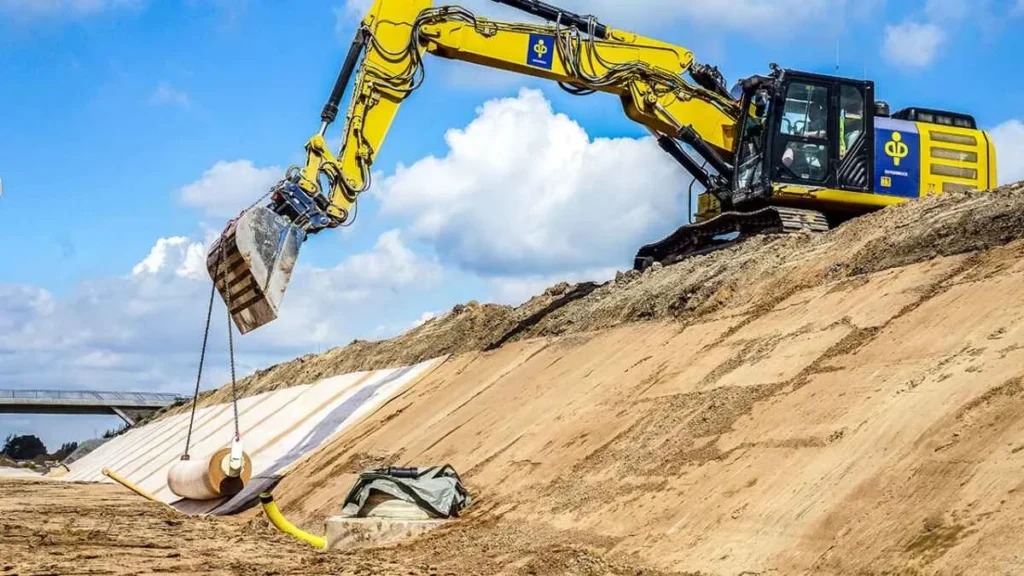

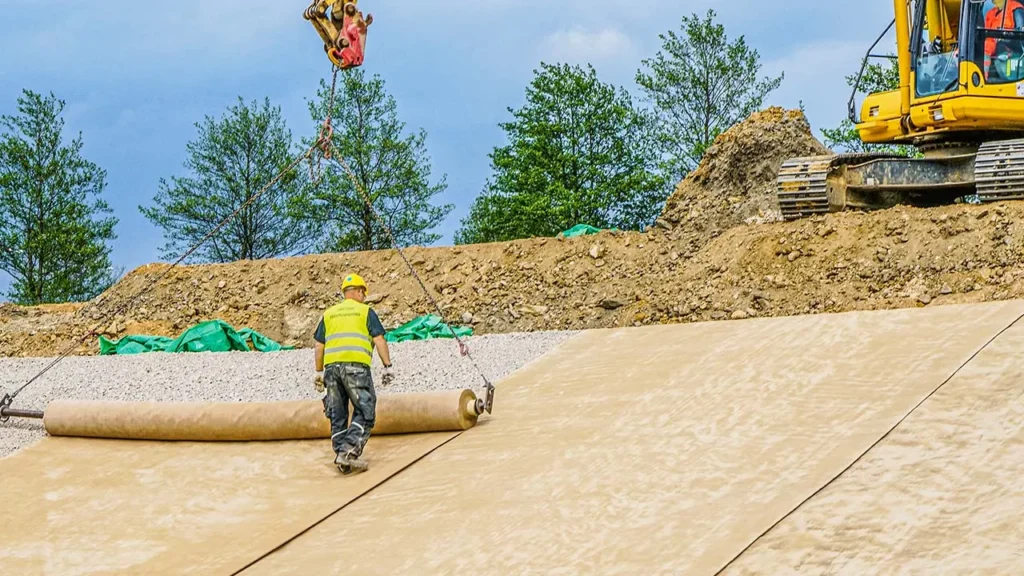

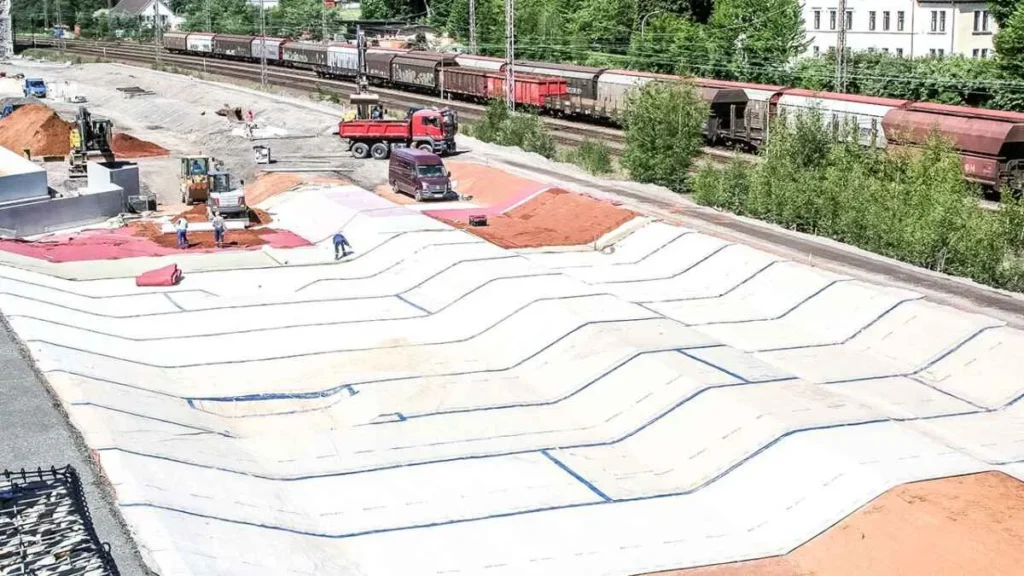

As an alternative to a 40 cm thick clay liners, the approximately 10 mm thick Bentofix® geosynthetic clay liner, manufactured with high swelling natural sodium bentonite, is used. The robust cover and carrier geotextiles used in the construction of Bentofix® are designed to withstand rough installation loads. Bentofix® is uniformly manufactured with direction-independent needlepunching (fibre reinforcement) over its entire surface area, with more than 2 million fibres per square metre. Depending on the existing soil conditions and slope lengths, slope inclinations of 2.5h:1v or greater are possible, due to the surface structure of the needlepunched cover and carrier geotextiles and the large internal friction angle. In poor soil conditions or on steeper slopes, Secugrid® geogrid can be used to further ensure slope stability.
Due to their thin profile, Bentofix® geosynthetic clay liners consume less airspace than compacted clay, and can require less soil excavation and removal. The Bentofix® BFG 5000 features a cover geotextile that has been uniformly impregnated with bentonite powder over its entire surface area. This bentonite treatment in the cover geotextile can make the installation more efficient as the field application of bentonite paste to the overlaps is not required.

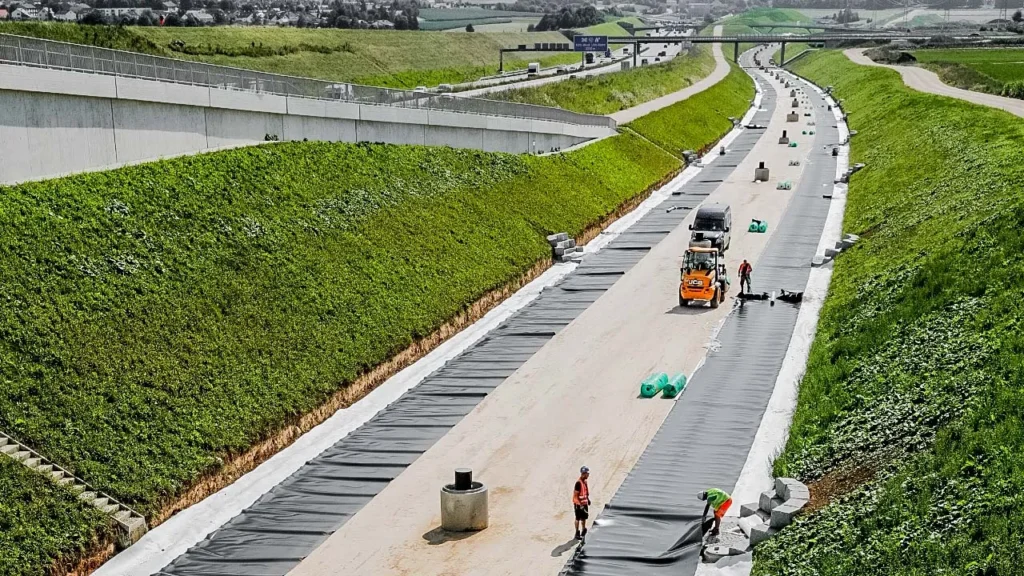

The Bentofix® encapsulating geotextiles are typically made from polypropylene (PP) resin and therefore sufficiently resistant to a wide range of conventional chemicals, such as diesel fuel, oil and benzene. In cases where aggressive chemicals may be encountered, the Bentofix® geotextiles can be manufactured with high density polyethylene (HDPE). Alternatively, 2.0 mm thick Carbofol® HDPE geomembranes can be installed. Carbofol® HDPE geomembranes are best suited to aggressive conditions due to their wide range of chemical and natural element resistance (e. g. to UV-radiation, rodents, chemicals). Not only is placement easy, it is also easy to weld Carbofol® HDPE geomembranes due to the favourable Melt Flow Index of the base resin.

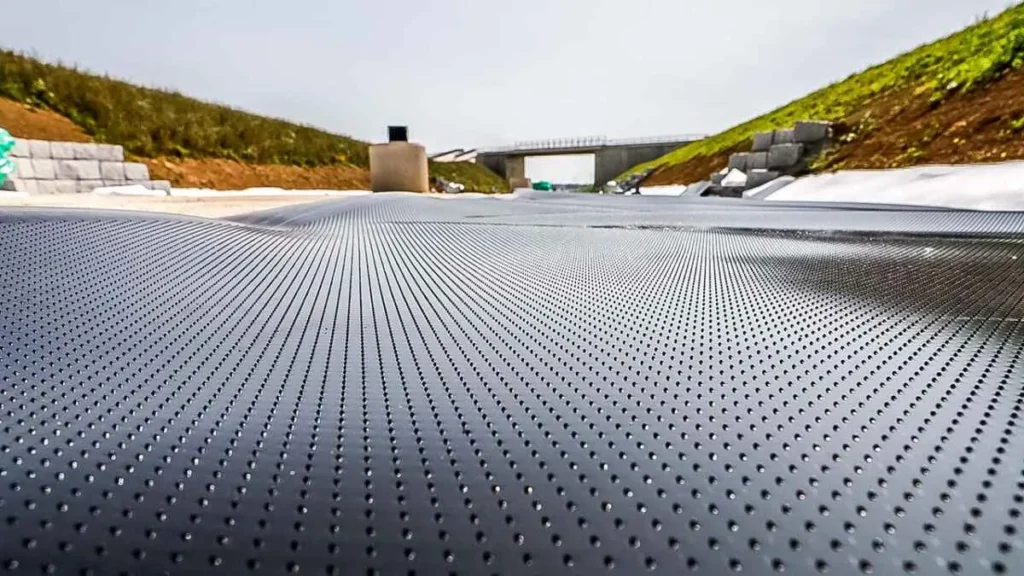

Structured and Friction Carbofol® geomembranes are available to effectively transfer shear forces on the most challenging slope locations. Regardless, project specific direct shear tests should be performed to verify the required shear strength parameters are being met by the components selected for use.

Protection

The encapsulating geotextiles of Bentofix® geosynthetic clay liners protect the bentonite, as well as providing sufficient robustness for on site handling. When high normal installation loads are anticipated, Bentofix® manufactured with nonwoven geotextiles with a minimum mass per unit area of 270 g/m² should be used. Performance of the Carbofol® HDPE geomembrane is assured when the installation is performed by industry experts. Depending on the regulatory requirements as well as site conditions, needlepunched protection nonwoven geotextiles, such as Secutex® (from PP) may be installed both above and below the Carbofol® geomembrane.

Erosion Control

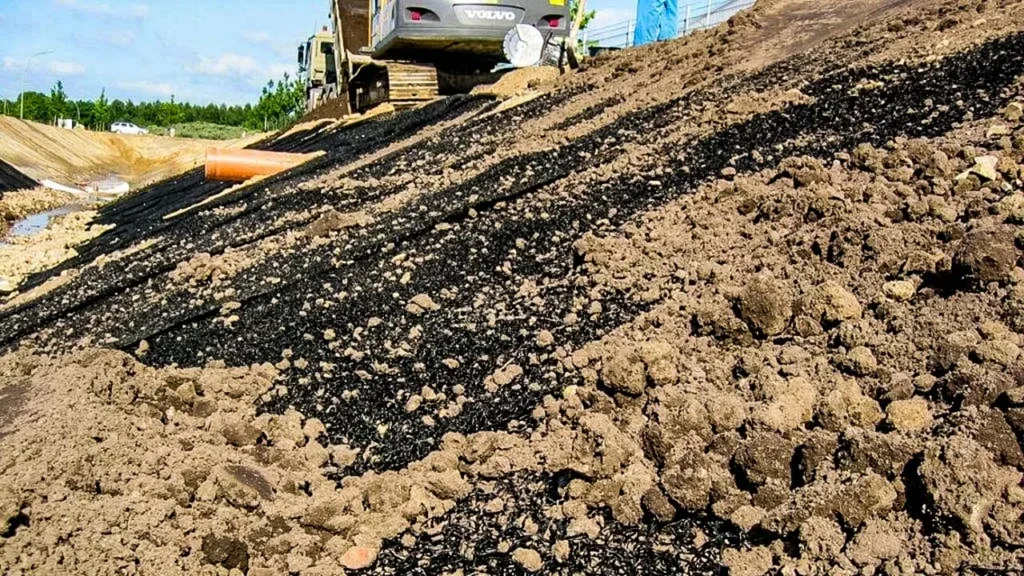

In steep slope areas, heavy rainfall may cause erosion ruts or wash away the young grass seed. Secumat® erosion control mats prevent surface erosion and rutting by retaining the soil and seed in a convoluting threedimensional structure. Secumat® is installed directly on the slope and filled with soil. Roots of the vegetation gradually enclose the convoluting layer of Secumat®, efficiently interlocking it with the surrounding soil.

Conclusion

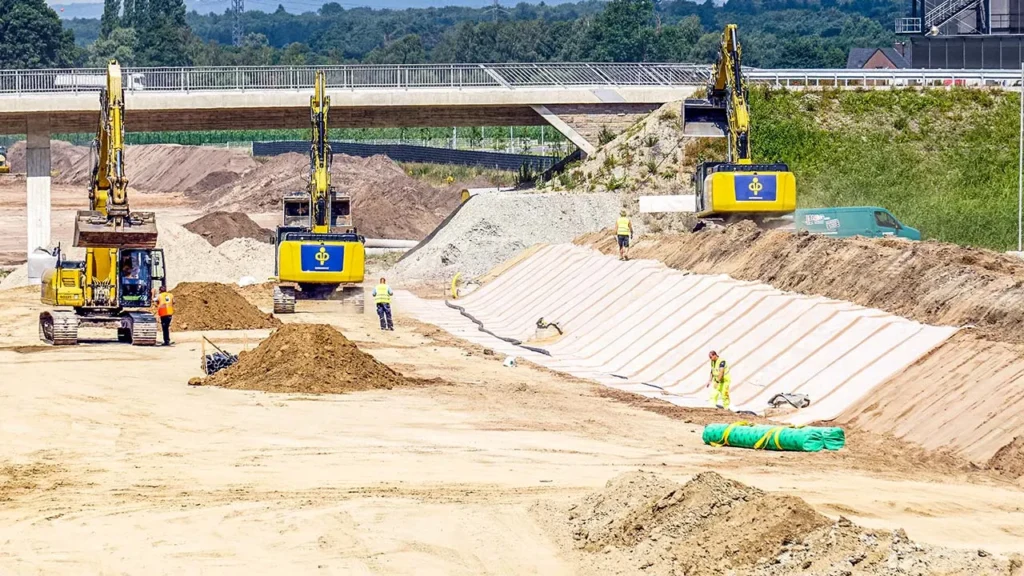

When constructing roads, railways or retention basins in groundwater protection areas, Bentofix® geosynthetic clay liners and Carbofol® geomembranes can be effectively used. Needlepunched Secutex® protection nonwoven geotextiles ensure a long-term protection of the Carbofol® geomembranes. Secugrid® geogrids can ensure the stability of steep slopes while Secumat® helps to prevent surface erosion. Complete geosynthetic system solutions from Novura are economical as well as ecologically superior alternatives for groundwater protection applications.
